Sources

A source is a way for a sending system to get messages to NEEV. Each source sends into a feed, so its messages run through that feed's pipeline and appear in Messages with the source named as the way they arrived.

Open Configure › Sources in the left sidebar.

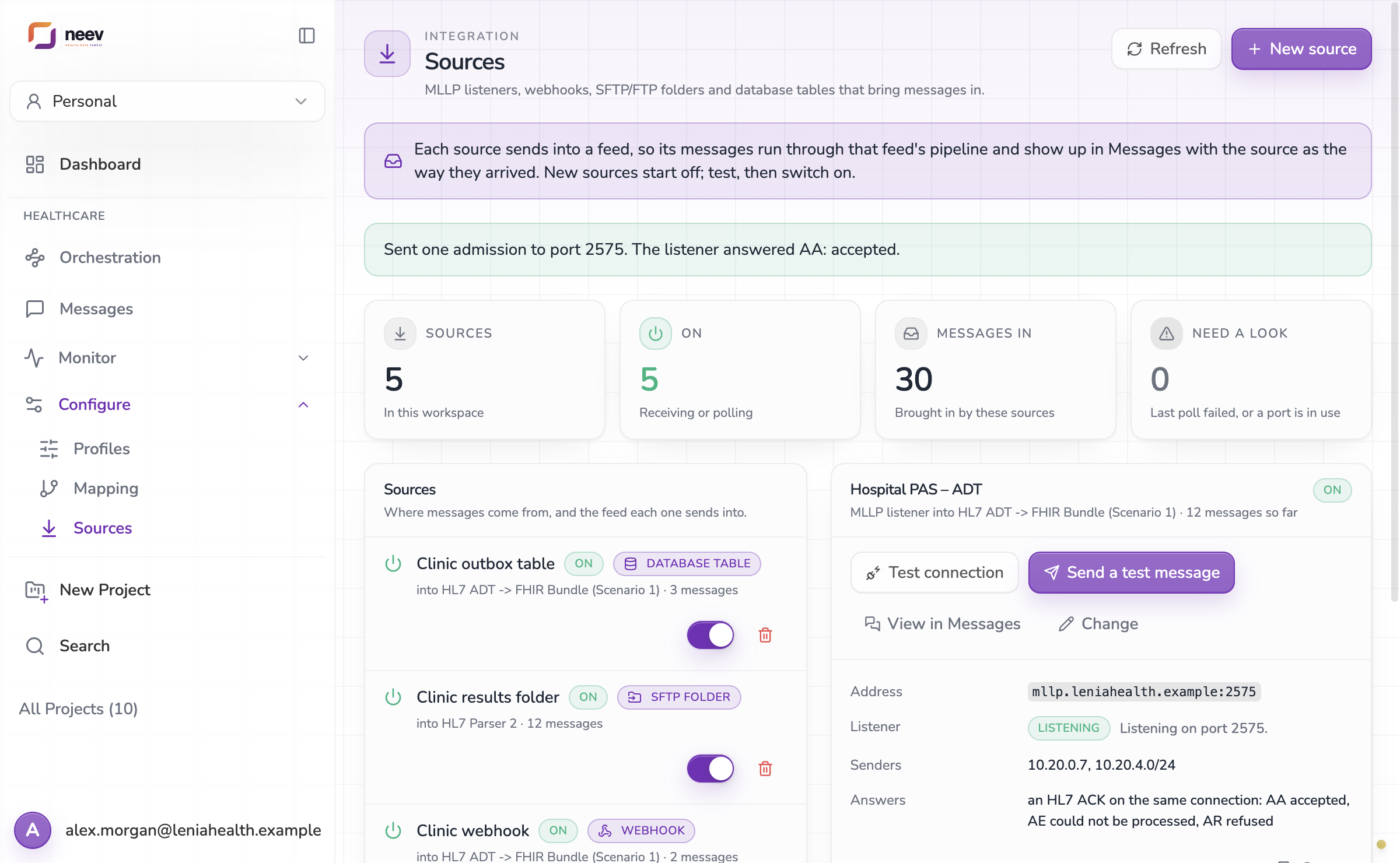

The Sources page with five sources switched on

Choose a kind

Kind	Use it when	The sender…	How messages arrive
MLLP listener	The clinic has an interface engine or PAS that speaks HL7 over TCP	connects to a port and sends framed HL7	Pushed, answered with an HL7 ACK on the same connection
Webhook	The system can make an HTTPS request	posts each message to a private address with a key	Pushed, answered with an HTTP status
SFTP or FTP folder	The system writes files, often batches of results	drops files in a folder	Read every few minutes, or when you press Poll now
Database table	The system writes messages to an outbox table	inserts rows	Read every few minutes, in order, from where it left off

All kinds behave the same once a message is in: the same pipeline, the same mapping, the same delivery, retries and alerts.

The page at a glance

• Sources, On, Messages in and Need a look count the workspace's sources. Need a look counts sources whose last poll failed or whose port is in use.
• The Sources list shows each source, its kind, the feed it sends into and how many messages it has brought in. The switch turns it on or off; the bin removes it.
• Select a source to see its details on the right: its address, how it signs in, its latest poll or listener status, and the buttons to test it.

Rules every source follows

• New sources start off. Add it, test it, then switch it on. A sender that tries while the source is off is told to hold the message and try again later, so nothing is lost.
• A source sends into one feed. Pick it under Send messages into. Your workspace's project feeds are listed first, then the built-in feeds.
• Secrets are never shown again. Passwords, private keys and webhook keys are stored encrypted. The page only shows that one is saved.
• Nothing is read twice. Files are moved out of the folder once read, and tables are read from the last row seen.
• Removing a source keeps its messages. Messages already in Messages stay there.

Who can do what

Role	Can
Viewer	See every source, its settings and its polls
Member	Test connection, Poll now, Send a test message, add a sample file or row
Admin	Everything above, plus add, change, switch on or off, remove, and make a New key for a webhook
